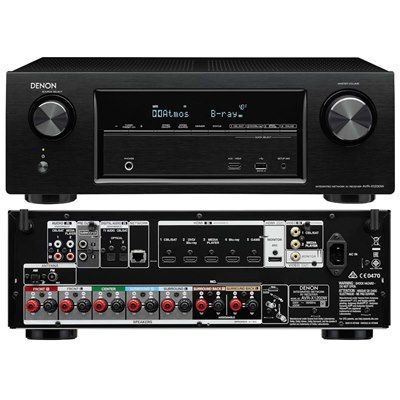

רסיבר 7.2 ערוצים מבית DENON דגם AVRX1200

רסיבר 7.2 ערוצים מבית DENON דגם AVRX1200

רסיבר קולנוע ביתי 7.2 ערוצים מבית Denon מהסדרה החדשה 2015
רסיבר רשת כולל WIFI אלחוטי מובנה ובלוטוס
תמיכה בטכנולוגיה החדשה בתקן HDCP 2.2 4K
תומך בתקן 4K 60FPS
2.2 בתקן HDMI כניסות 6
תמיכה בפורמטי סאונד החדשים והמדוברים:
®DTS:X™ and Dolby Atmos
שליטה על הרסיבר מכל סמארטפון או טאבלט
ZONE 2 אזור שמע נוסף כולל ניגון ווליום עצמאי לחלוטין.
עוצמתי במיוחד 145 וואט לערוץ.
7.2 ערוצים לקולנוע ביתי אמיתי ומושלם.
האזנה לרדיו אינטרנט מכל העולם בחינם.

SPECS ­ AVR­X1200W
Multichannel Surround
DTS HD Master / DTS:X / (update)
DTS Neo:X / DTS Neural:X / (7ch) (update)
Dolby TrueHD / Dolby Atmos /
Dolby ProLogic Ilz / Dolby Surround /
Auro 3D
Audyssey DSX
Multichannel Stereo
Max Number of Processing (Preamp) Channels7.1
Sound Enhancements
Mono Block Power Amp Construction
Discrete Power Amplifier
D.D.S.C. HD Digital
Copper plated chassis
Power Transformer: Toroidal / EIEI
Current Feedback Topology
Hyper Dynamic Amplifier Modules (HDAM)
Pure Direct
High Grade Audio Components
Gold Plated RCA Terminals
Clock Jitter Reducer
Alpha Processing
Denon Link HD
AudysseyMultEQ XT
Audyssey Dynamic EQ / Dynamic Volume /
Audyssey LFC
Compressed Audio Restorer
Compressed audio Enhancer: MDAX2

Network
DLNA Certified (v1.5)
Lossy Formats: MP3 / WMA / AAC / /
Lossless Formats: FLAC / ALAC / WAV / /
25.9.2015 www.stereoshop.co.il/print.asp?pid=39
http://www.stereoshop.co.il/print.asp?pid=39 3/6
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 96/24 / /
DSD Audio Streaming
FLAC HD 192/24
WAV 192/24
ALAC 96/24
Gapless Playback (FLAC, WAV)
Photo Streaming (JPEG)
AirPlay Audio Streaming
Windows PlayTo / Windows8 Certified /
Internet Radio (vTuner)
Spotify* (connect)
Compatible with Remote APP for Smart PhonesAndroid / iOS
Compatible with Remote APP for TabletsAndroid / iOS
Ethernet Ports
Wi­Fi
Bluetooth
HDMI
HDMI Inputs: Back / Front5 / 1
HDCP 2.2 support
HDMI Outputs: Main / Zone1 /
Video Conversion Analog ­> HDMI
Analog to HDMI Scaling
HDMI to HDMI Scaling
GUI Overlay on HDMI
HDMI: 3D / 4K / CEC / ARC / InstaPrevue / / / /
3D Signal Pass­through
4K Signal Pass­through / Scaling / GUI Overlay / /
HDMI pass­though in standby mode
Picture Adjust / Noise Reduction /
CEC
DSD Audio Capability

Audio Return Channel
Auto LipSync
25.9.2015 www.stereoshop.co.il/print.asp?pid=39
http://www.stereoshop.co.il/print.asp?pid=39 4/6
Multiroom / CI
Multi­Room Zones2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog / / /
Zone Audio Output: Speaker / Preout /
Zone HDMI Output from HDMI Source
IP Control / RS232 Control / Web Control / App Control / / /
Remote In / Out /
IR Flasher In
Marantz remote bus
DC Trigger Output

Others
Auto Speaker Setup by MicrophoneAudyssey MultEQ XT
FL Display1 line
Graphic User Interface ­ GUIHybrid GUI
ISF Certification
GUI Languages9
Setup Assistant
Quick Select Plus / Quick Select /
Smart Select
Firmware Update by Network / USB /
Variable Cross Over
Optimized Bass Redirection
Bass Sync
ECO Mode
Auto Power Off
Sleep Timer

Inputs/Outputs
Composite In / Out2 / 1
Component In / Out /
HDMI In / Out5+1 / 1
Multi­room Video Out: Video / HDMI /
Analogue In / Out2 /
Phono (MM) In
Digital In: Optical / Coaxial2 / 0
Multi­room Out: Analog / Digital /
Multichannel Preout (0.2) /
Subwoofer Out2
7.1 Multichannel Input
Speaker Terminal: Gold Plated Screw / Regular Screw /
Number of Speaker Terminals7
Speaker A/B / Bi­amp Drive / Multi­Room Speakerassignable
Speaker A / Bassignable
Bi­amp Driveassignable
Multi­Room Speaker Terminalassignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB / / / /
USB Audio / Made for iPod / Made for iPhone / /
FM Tuner with RDS

Specifications
Number of Poweramps7
Power Output (8 ohm, 20 Hz ­ 20 kHz, 0.08% 2ch Drive)80 W
Power Output (8 ohm, 20 Hz ­ 20 kHz, 0.05% 2ch Drive)
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)120 W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)145 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive)175 W
70% GuaranteeGeneral
Available Colours: Gold / Silver / Black / Silver­Gold
Available Colours: Black / Premium Silver /
Metal Front Panel
System Remote ControlRC­1189
Pre­programmed / Learnable / LCD Display / /
Power Consumption in W430
Power Consumption No­Sound (ECO On / Off) in W30 W / 45 W
Standby Consumption in W0.1
CEC Standby Consumption in W0.5
Network Standby Consumption in W2.7

Maximum Dimensions
Antenna:Horizontal: (W x D x H) in mm
Antenna:Vertical: (W x D x H) in mm
W/O Antenna: (W x D x H) in mm434× 339 × 151
( 434 x 339 x 215)
Weight in kg8.5

אחריות ל-3 שנים ע"י ט.ר אלקטרו סטריאו
